recable
Smartphone & Laptop Charger 30 Watt USB-A & USB-C, foldable

The recablecharger 30 W USB A and USB-C is compatible with a wide range of devices.

With the USB-C socket, you are well prepared for the future. USB-C is becoming more and more popular. You can even charge smaller laptops with the charger. But thebest thing about the plug is that you can no longer plug it in the wrong way round.

USB A also lets you reuse existing cables. By continuing to use your USB A cables, you save valuable resources.

If you use both outputs, the power supply splits the charging power. The charger supports all common fast charging technologies (Power Delivery, Quick Charge & PPS). You can also charge laptops (up to 30 watts)!

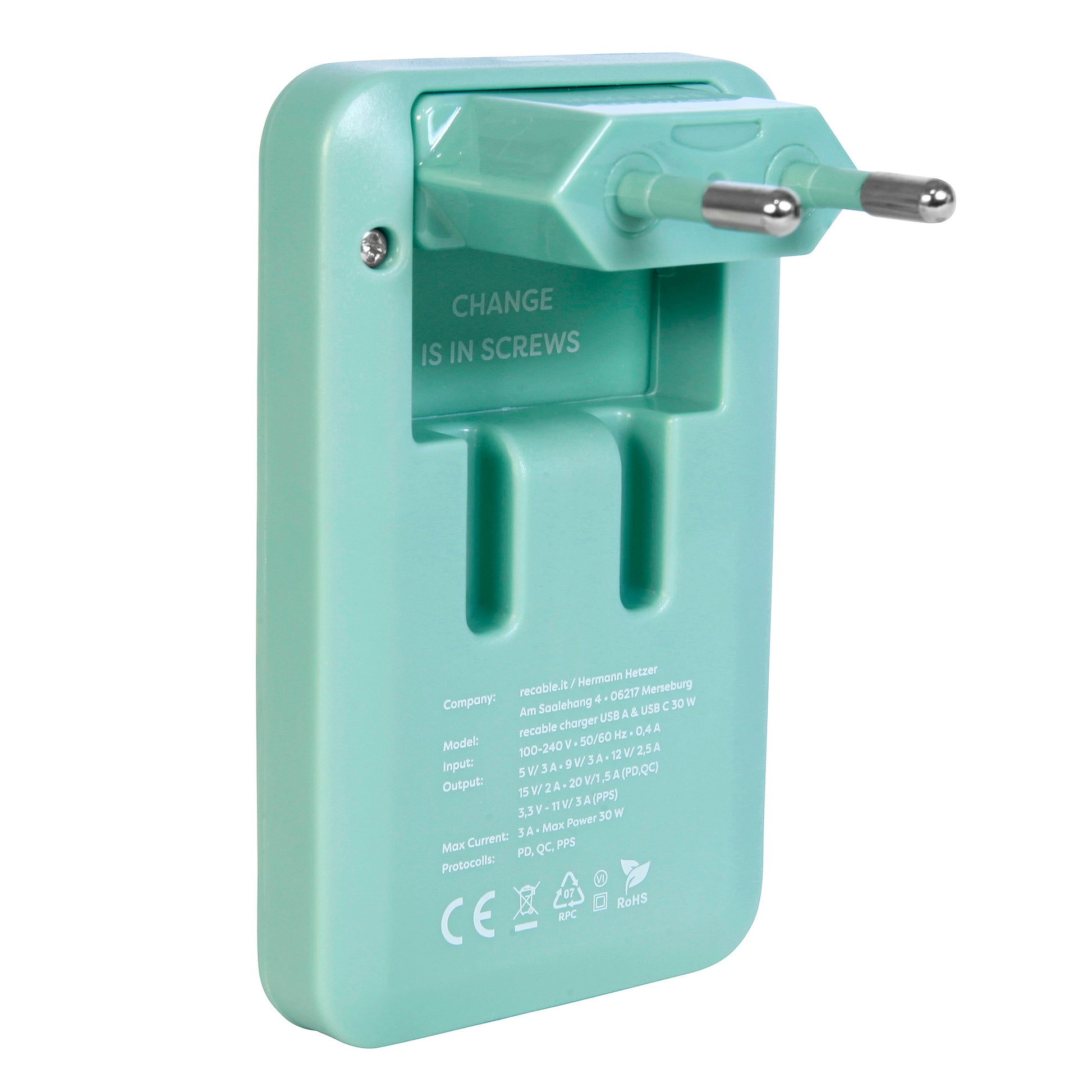

The pastel green casing of the recable charger is made of recycled plastic (polycarbonate). In addition, the housing is screwed and not glued, so that the charger can be repaired!

The charger can be folded, making it very small and flat. It fits perfectly in the pocket.

Technical data

• Outputs:
  • USB-A
  • USB-C
• 30 Watt charging power
  • Power Delivery / Quick Charge:
  • USB-A and USB-C simultaneously:
• Housing made from recycled plastic
• repairable
• foldable, small & flat
• minimal cardboard packaging
• EU Konformitätserklärung RoHS Richtlinie 2011/65/EU + 2015/863/EU, Erp Richtlinie 2009/125/EG, EMV Richtlinie 2014/30/EU, LVD Richtlinie 2014/35/EU
• made in China

a) Information in accordance with Regulation 2019/1782
Manufacturer: recable, Hermann Hetzer, Am Saalehang 4, 06217 Merseburg
Model code: recable-charger-pastel-green EAN: 4250851614338
Input voltage: 100 - 240 V/AC
Input alternating current frequency: 50/60 Hz

Output voltage: 5V, 9V, 12V, 15V, 20V
Output current: 1.5A, 2A, 2.5A, 3A

Output power: 15W, 27W, 30W

Output 1: 5V, 9V, 12V, 15V, 20V  V/DC, max. 3 A, max. 30.0 W
Output 2: 5V, 9V, 12V, 15V, 20V V/DC, max. 3 A, max. 30.0 W

Output 1 + output 2: 20 V/DC, max. 3 A, max. 30.0 W

Available combinations:
Input: 230V 50Hz, Type-C Output: 5Vdc, 3A
Input: 230V 50Hz, Type-C Output: 9Vdc, 3A
Input: 230V 50Hz, Type-C Output: 12Vdc, 2.5A
Input: 230V 50Hz, Type-C Output: 15Vdc, 2A
Input: 230V 50Hz, Type-C Output: 20Vdc, 1.5A

Input: 230V 50Hz, USB Output: 5Vdc, 3A
Input: 230V 50Hz, USB Output: 9Vdc, 3A
Input: 230V 50Hz, USB Output: 12Vdc, 2.5A
Input: 230V 50Hz, USB Output: 15Vdc, 2A
Input: 230V 50Hz, USB Output: 20Vdc, 1.5A

Input: 115V 60Hz, Type-C Output: 5Vdc, 3A
Input: 115V 60Hz, Type-C Output: 9Vdc, 3A
Input: 115V 60Hz, Type-C Output: 12Vdc, 2.5A
Input: 115V 60Hz, Type-C Output: 15Vdc, 2A
Input: 115V 60Hz, Type-C Output: 20Vdc, 1.5A

Input: 115V 60Hz, USB Output: 5Vdc, 3A
Input: 115V 60Hz, USB Output: 9Vdc, 3A
Input: 115V 60Hz, USB Output: 12Vdc, 2.5A
Input: 115V 60Hz, USB Output: 15Vdc, 2A
Input: 115V 60Hz, USB Output: 20Vdc, 1.5A


Average efficiency in operation 85,3 %
Efficiency at low load (10%) 81,8 %
Power consumption at no load 0,05 W

Detailed measurement results ERP report

The USB power supply is compatible with these devices:

Smartphones

Fairphone, Shiftphone, Maraphone, Terracube, Samsung Galaxy, Apple iPhone, Google Pixel, Xiaomi Mi, Huawei, LG, HTC, Honor, Asus, Sony, Nokia

Tablets

Samsung Galaxy Note, Apple iPad, Microsoft Surface, Xiaomi Mi Note, Huawei

Laptops

up to 30 watts, for example: Samsung Galaxy Book S or Apple MacBook Air

other

Arduino, Raspberry Pi
